Comfort Panel for Sonniger GUARD Air Curtains & Sonniger HEATER R Unit Heaters
Comfort Panel for Sonniger GUARD Air Curtains & Sonniger HEATER R Unit Heaters
For GUARD Commercial Air Curtains and HEATER R Unit Heaters (LPHW)

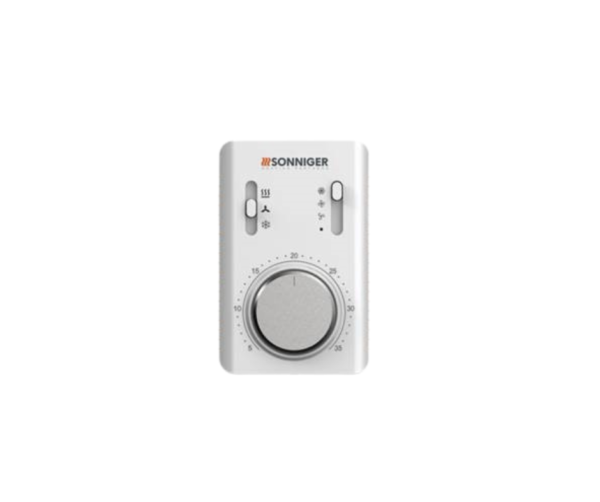

The Comfort Panel is used for speed regulation and thermostatic control and is compatible with GUARD Commercial Air Curtains and HEATER R Unit Heaters (LPHW).
NOTE: This product is compatible with all Guard Air Curtains except the Guard One 100E.
Key Features
Key Features
HEATER R (LPHW) Unit Heater Application:
ON/OFF – Turns unit ON/OFF
I-II-III – Switch for fan speed regulation
HEAT – Thermostat sends signal to valve, actuator and fan. Fan turns off when temperature in room is achieved, valve/actuator closes water supply.
FAN – function not active, unit will not operate when FAN switch is selected
COOL – thermostat sends signal only to fan, fan begins operation starting from temperature which is set on thermostat (function used for Ambient version or for room ventilation in summer season)
Guard Air Curtain Application:
ON/OFF – switching on/off of the machine
I-II-III – Switch for fan speed regulation
HEAT – when the room temperature is lower than the set value, the thermostat switches on the fan, the electric element (GUARD E) and the valve/actuator (GUARD W); When the set temperature is reached, the fan is switched off, the valve closes the water flow or the electric heater switches off
FAN / COOL – not supported function, in this settings the device does not work
Technical Specifications
Technical Specifications
Design and Installation
Design and Installation
