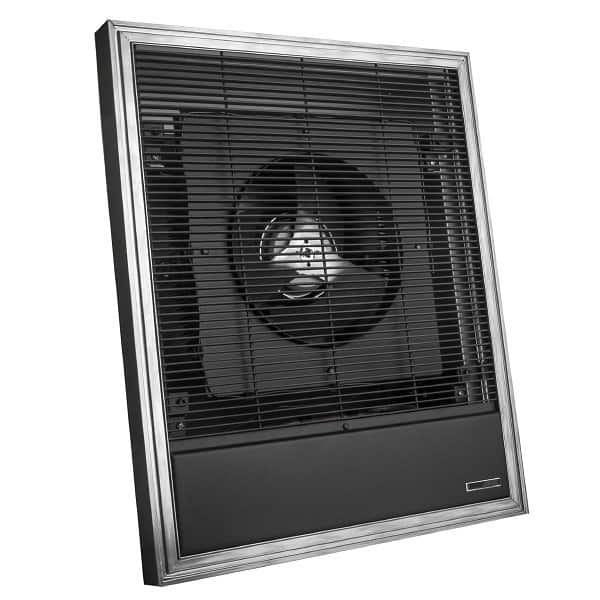

Electric Architectural Wall Heater

£810.00 GBP

Sale Sold out

VAT excluded. Shipping calculated at checkout.

Lead Time: This product will be dispatched within 7-10 days.

Architecturally styled heavy duty fan wall heaters for commercial areas.

Rugged construction without the ‘industrial’ look makes it an ideal choice for entrance lobbies, stairways and waiting rooms.

Higher output models, up to 5kW, are ideal for larger area heating requirements.

Download Brochure

PRODUCT DATA SHEET

CHDA Architectural Wall Heater

Key Features

Space saving recess mounting model as standard
Surface mounting box available as option
High reliability heavy duty finned metal sheathed elements
Totally enclosed permanently lubricated motor
Over temperature safety cut-out
Tamper-proof integral thermostat
Heavy duty welded steel louvered grille with aluminium frame
Quiet low speed axial fan- dark brown powder coated finish with anodised natural aluminium frame

Technical Specifications

Product Code		Output (kW)	Volts	Air Vol (m3/hr)	Height (mm)	Width (mm)	Depth (mm)	Weight (kg)
CHDA-2000	For recess mounting	2	230	340	541	443	146	12
CHDA-3000	For recess mounting	3	230	340	541	443	146	12
CHDA-4000	For recess mounting	4	230	340	541	443	146	12
CHDA-5000	For recess mounting	5	230	340	541	443	146	12
CHDA-S	Surface mounting box				541	443	146	1

Design and Installation

The units must be vertically mounted, not less than 300mm from any vertical surface or the floor. Each unit is supplied for recess mounting, surface mounting requires the optional surface box (CHDA-S). The unit should be securely fixed.

All electrical connections should be made by a suitably qualified person in accordance with the latest edition of the IEE Requirements for Electrical Installation (BS 7671:2008).

Diagram

Download Installation Instructions
