Electric Fan Wall Heater

Electric Fan Wall Heater

£480.00 GBP
£480.00 GBP
Sale Sold out
VAT excluded. Shipping calculated at checkout.

The CQAC range of fan forced electric wall heaters are suitable for commercial areas such as entrance lobbies, stairways, corridors and waiting rooms.

A robust electric wall heater, it is ideal for heavy traffic areas. Capacities up to 4.8kW are available.

The integral tamper proof thermostat provides a cost effective way of controlling energy usage.

The Electric Wall Heater is a heavy duty fan heater for commercial spaces with heat outputs ranging from 1.5kW-4.8kW depending on the model selected.

It makes an ideal choice of heater for high traffic areas such as entrance lobbies, stairways, corridors and waiting rooms.

All models are designed for recess mounting within a wall. An addition surface mounting box can be purchased if surface mounting is required.

All models are designed for 230V single phase supply and feature an integral tamper-proof thermostat and an efficient low speed 600 rpm motor with vane axial fan.



Download Brochure



Key Features

  • Suitable for surface or space saving recess mounting
  • High reliability heavy duty finned metal sheathed elements
  • Efficient low speed, 600 rpm, motor with vane axial fan
  • Electric element safety cut-out with auto reset
  • Tamper proof thermostat and on/off switch
  • Fan delay switch on thermostat on/off cycle
  • Heavy duty steel louvred grille with extruded aluminium frame
  • Ceiling mounting version available
  • Dark brown powder coated finish with anodised natural aluminium frame

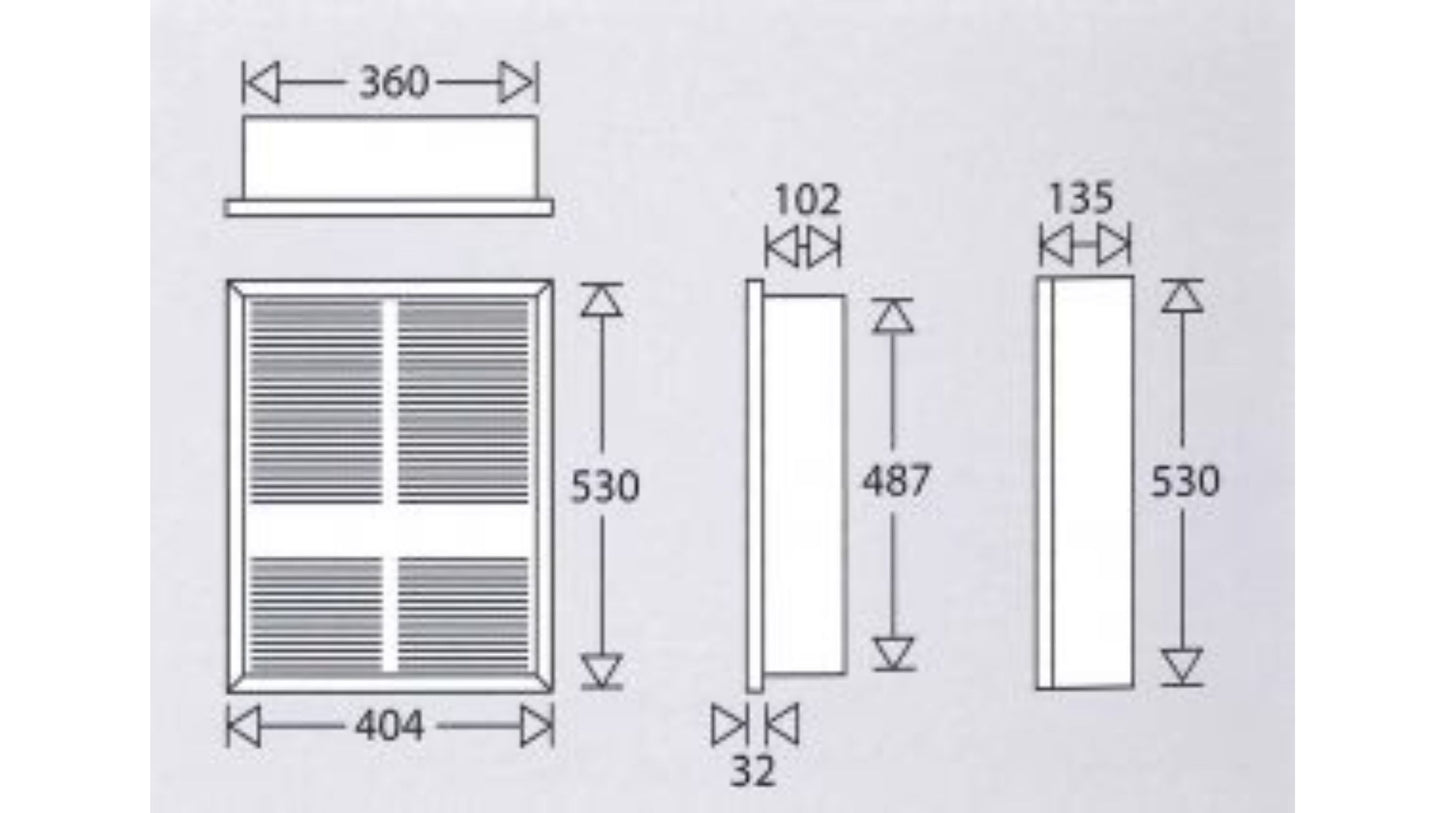

Technical Specifications



Product Code Heat
Output
(kW)		 Volts Air Vol
(m3/hr)		 Height
(mm)		 Width
(mm)		 Depth
(mm)		 Weight
(kg)
CQAC-1500 For recess mounting 1.5 230 300 530 404 135 10
CQAC-2000 For recess mounting 2 230 300 530 404 135 10
CQAC-3000 For recess mounting 3 230 300 530 404 135 10
CQAC-4000 For recess mounting 4 230 300 530 404 135 10
CQAC-4800 For recess mounting 4.8 230 300 530 404 135 10
CQAC-S Surface mounting box 530 404 135 1

Design and Installation

The electric wall heater is recommended for vertical mounting. It should not be mounted closer than 200mm to any vertical surface, ceiling or floor. Each unit is supplied for recess mounting. Surface mounting requires the optional surface box (CQAC-S). The unit should be securely fixed and electrical connections made by a suitably qualified person in accordance with the latest edition of the IEE Requirements for Electrical Installation (BS7671:2008).

Download Installation Instructions
