Sonniger GuardPro Industrial Air Curtain (LPHW, electric or ambient air options)
Sonniger GuardPro Industrial Air Curtain (LPHW, electric or ambient air options)
Couldn't load pickup availability

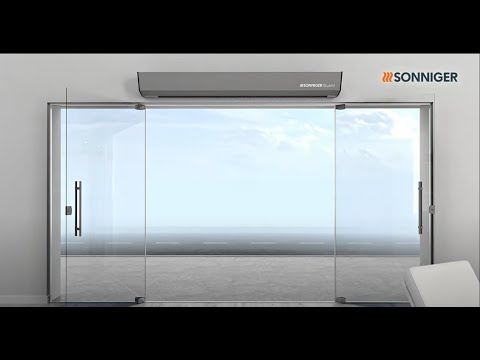

High quality at competitive prices. GuardPro Industrial Air Curtains are designed to minimise heat loss in high traffic areas by maintaining a protective barrier at the entrance to the building or between two areas of different temperatures.
Powerful fans deliver airflow up to 7.5m. A modular design approach enables coverage of wide openings based on 1m & 2m lengths. Vertical or horizontal installation.
Typical installations include large retail outlets & showrooms, factories & industrial warehouses, garages & workshops. Brackets included.
Please note:
1) Learn about the difference between an Air Curtain and an Over-Door Heater here.
2) The kW heat outputs for the LPHW range in the drop-down are based on a mean water temp. of 70C and ambient air temp. of 10C.
3) Noise levels found below in technical specifications
Key Features
Key Features
- Electric, LPHW & no heat ‘ambient air’ options
- Electric models – PTC electric heating elements
- Modern & innovative modular design approach
- Combine 1.5m & 2m lengths for wide openings
- Horizontal or vertical orientation
- High performance fans – throw up to 7.5m
- Aluminium Grey powder coated as standard
- Flexible Control Options
- Failure rate of only 0.39%
- Noise levels found below in technical specifications
Technical Specifications
Technical Specifications
| Water-fed (LPHW) |
Water-fed (LPHW} |
Electric | Electric | Ambient Air | Ambient Air | ||
| GuardPro 150W | GuardPro 200W | GuardPro 150E | GuardPro 200E | GuardPro 150C | GuardPro 200C | ||
| Length | (m) | 1.5 | 2 | 1.5 | 2 | 1.5 | 2 |
| Heat Output* | (kW) | 24* | 34* | 14 | 21 | - | - |
| Max Airflow | (m3/h) | 6,500 | 9,000 | 6,700 | 9,100 | 5,800 | 9,200 |
| Fan Input/Consump | (V/Hz & A) | 230/50 2.4A | 230/50 3.6A | 230/50 2.4A | 230/50 3.6A | 230/50 2.4A | 230/50 3.6A |
| Fan Motor Power | (kW) | 0.5 | 0.75 | 0.5 | 0.75 | 0.5 | 0.75 |
| Electrical Element Consump | (V/Hz & A) | - | - | 400/50 17A | 400/50 29A | - | - |
| Noise level | dB (A) | 59 | 61 | 59 | 61 | 59 | 61 |
| Weight with/out water | (kg) | 46/44 | 62/60 | n/a/37 | n/a/51 | ||
| Protection class | IP | IP 54 | IP 54 | IP 54 | IP 54 | IP 54 | IP 54 |
