High Level Electric Heater

£245.00 GBP

Sale Sold out

VAT excluded. Shipping calculated at checkout.

Designed for general space heating applications, where a high level mounted heater is required. The fully adjustable bracket allows the adjustment of the direction of airflow for optimum heat distribution. The high-level heater has an integral thermostat, which gives energy-saving temperature control at low installation cost. Typical applications include shops, workshops and warehouses.

All models are wired for 230V with a heat output of 3kW.

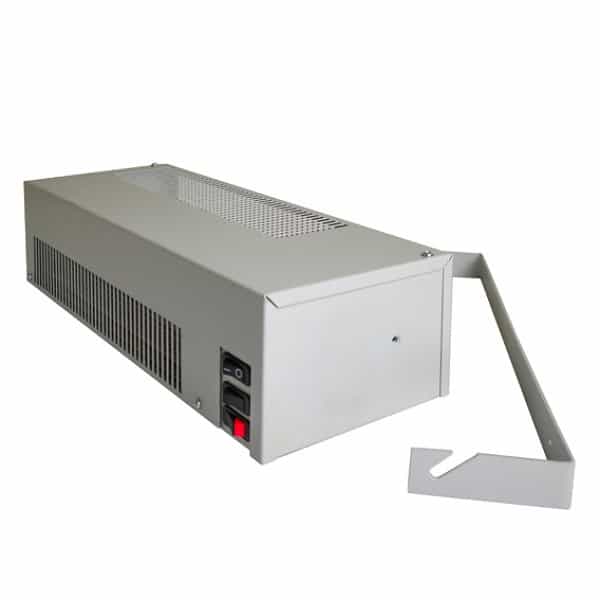

The attached bracket allows for either wall or ceiling mounting and for the adjustment of the direction of airflow for optimum heat distribution.

The high-level heater has a model option with an integral thermostat, which gives energy-saving temperature control at a low installation cost.

HLH Dimensions

Download Brochure

Key Features

3kW output, 230V input
Adjustable bracket for wall or ceiling mounting
Alternative keyhole fixing for secure installation
Integral switches for heat selection and fan only
Pre-connected cable for ease of installation
Over temperature cut-out with power off reset
Standard light grey textured powder coating finish (RAL7035)

Technical Specifications

Product Code		Watts	Volts	Length(mm)	Width(mm)	Depth(mm)	Weight(kg)
HLH-3000	Light Grey (RAL7035)	3000	230	450	170	110	4
HLH-3000TB	Light Grey (RAL7035) with Integral Thermostat	3000	230	450	170	110	4

Design and Installation

The HLH-3000 is for high level mounting and must be mounted at a minimum height of 1.8m and, for optimum effect, the maximum recommended mounting height is 2.3m. The heater must be mounted horizontally. For general space heating the unit can be directed at an angle.

The unit should be securely fixed using the adjustable mounting bracket. The mounting bracket allows easy wall or ceiling mounting. Alternatively the unit can be wall mounted using the keyhole slots in the back of the unit.

The HLH-3000 is only suitable for connection to a 230V single phase power supply and is supplied with a pre-connected cable for quick connection.

The HLH-3000 heater should be connected to a suitably fused power supply. Connection should be via. a 2 pole switched connection unit having a contact separation of at least 3mm in all poles. All electrical connections should be made by a suitably qualified person in accordance with the latest edition of the IEE Requirements for Electrical Installation (BS 7671:2008).

Download Installation Instructions
