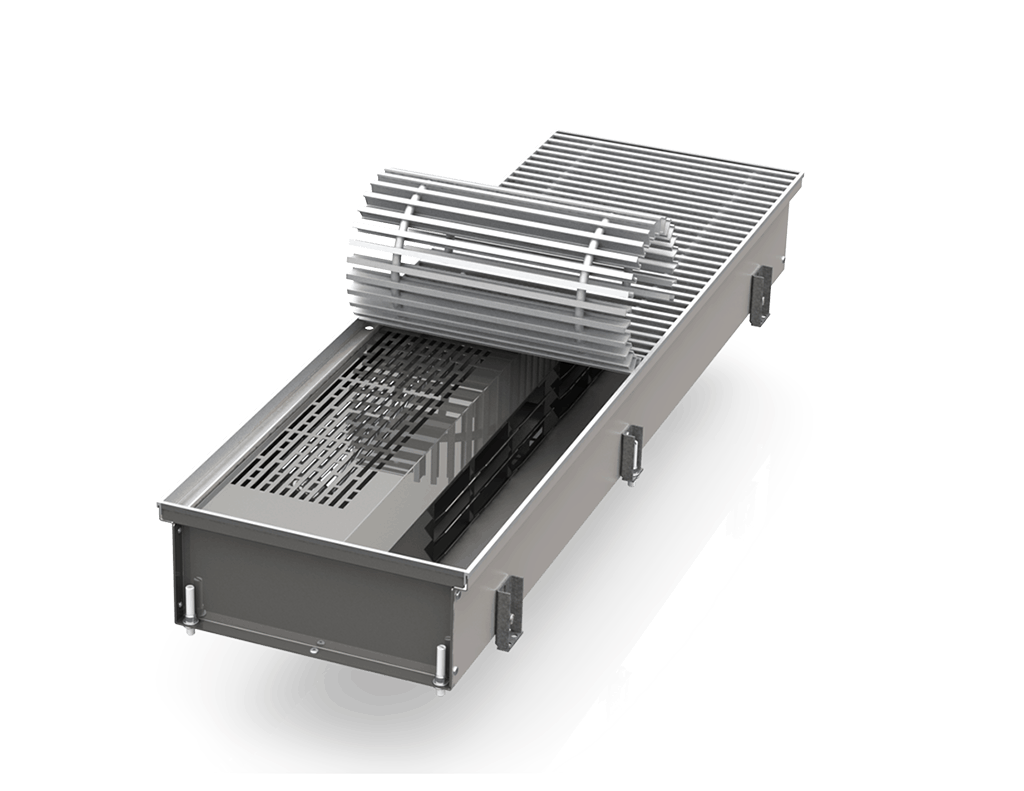

Hitte Fan-Assisted Electric Trench Heating

Hitte Fan-Assisted Electric Trench Heating

£1,010.00 GBP
£1,010.00 GBP
Sale Sold out
VAT excluded. Shipping calculated at checkout.

Hitte Fan-Assisted Electric Trench heating is ideal for space heating where a conventional hot water supply is not readily available. When located under windows and highly glazed areas, it's perfect for counteracting associated heat losses. Being fan-assisted, it heats up a space more rapidly and delivers a higher heat output than a natural convection electric trench system. Our on-line stock of 1m length or 2m length units boast heat outputs of 1.5kW & 3kW respectively.

Order online or contact our Technical Sales team to explore the vast range of dimensional unit depth, width and length configurations available and the many choices on grilles, trough materials and finishes.

Configure your system using our Product Specification & Costing Tool

Download Brochure

Key Features

  • High Heat Output units – 1.5kW or 3kW
  • Supplied in standard lengths of 1m and 2m
  • Height/Depth 125mm & Width 305mm
  • Standard grille of aluminium – anodised finish
  • Trough Material of 304L Stainless Steel as standard
  • Operates on 230V single phase electrical supply
  • Integral fuse to prevent element overheating

Technical Specifications



Electric Fan Assisted Trench Heater
Product Code
(stock models)		 Length
(mm)		 Width
(mm)		 Height/Depth
(mm)		 Output
(W)		 Electrical Supply Max Noise
Level
(db)
EXX1253051000XNXX 1000 305 125 1500 230V/50hz 9A 28
EXX1253052000XNXX 2000 305 125 3000 230V/50hz 15A 44

Design and Installation

Trench heating systems can be supplied in a multitude of geometries and with additional features such as ‘dummy’ sections where a continuous aesthetic is desired without additional heat output, with mitred corners, column features and even with curved trench sections. We’d be delighted to help you explore options and design your optimum scheme. Just contact us for assistance and to talk through your ideas.

Our Trench Heaters should be installed by suitably qualified builders and electricians. The unit should be securely fixed and electrical connections made by a suitably qualified person in accordance with the latest edition of the IEE Requirements for Electrical Installation (BS7671).
