Hitte Floor Standing Perimeter Heater

Hitte Floor Standing Perimeter Heater

Contact For Price
VAT excluded. Shipping calculated at checkout.

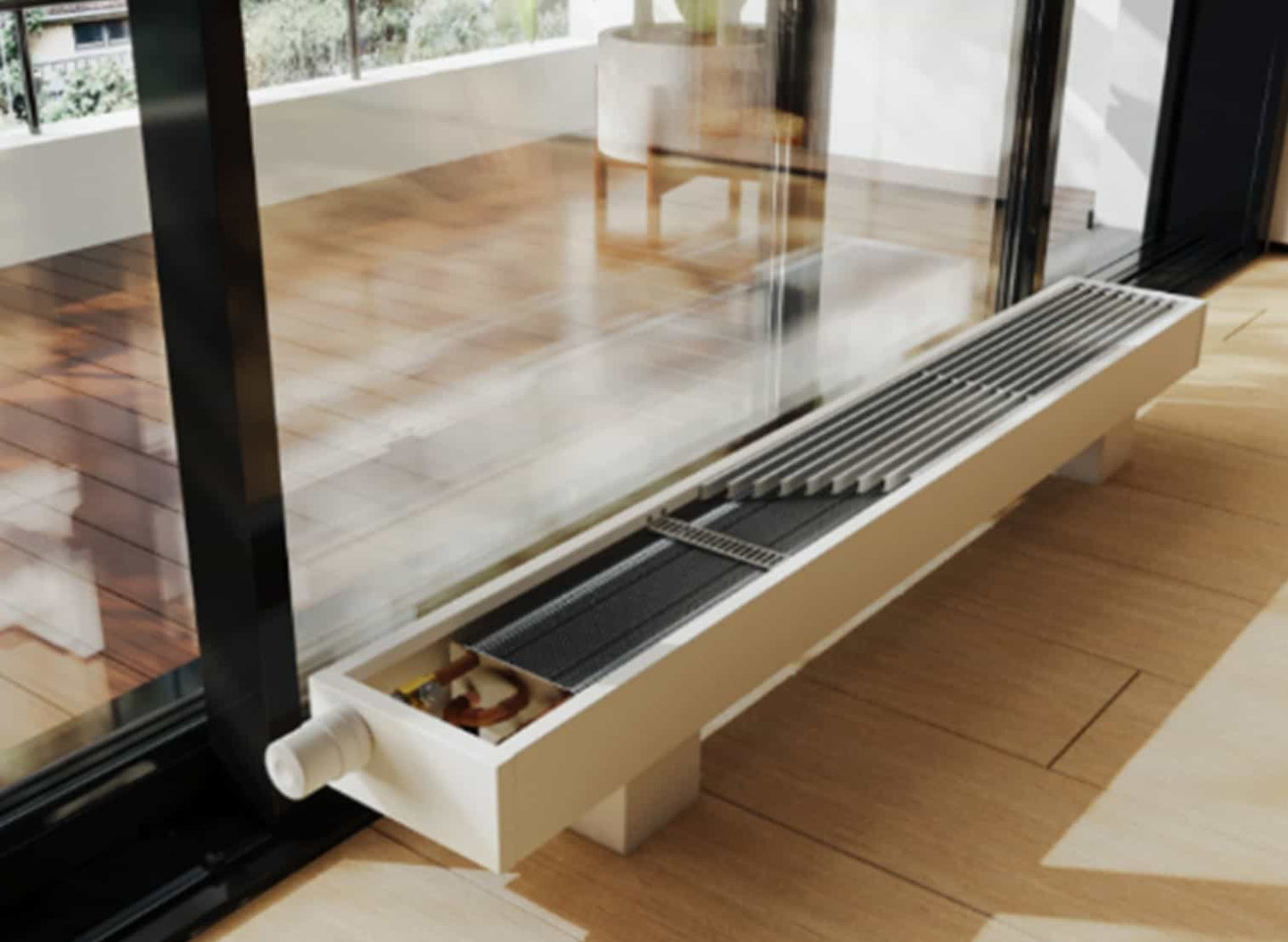

Hitte Floor Standing Perimeter Heaters are a stylish type of convection heating devices which are easy to integrate into heating systems.

These heaters are versatile which allows you to incorporate them with any interior design. High performance parameters make this ideal for heating residential, public and office spaces.

Pure, clean aesthetics make this ideal for minimalist loft or high-tech design themes.
The Hitte Floor Standing Perimeter Heaters use piped hot water (LPHW) as a heat source or if you have no available LPHW we can offer a fan assisted electric version (request information). Hot water can be supplied from a conventional hot water boiler, solar energy hot water system or a ground source heat pump. The heat output directly relates to the flow/return temperatures of that source. Internal surfaces are insulated and coated with heat reflective finish to improve the trench’s efficiency.

Lead time for this product is currently around 8 weeks.

Heat outputs can be found in the Technical Specifications drop-down menu below.

Download Brochure

Key Features

  • Zintec steel cover
  • Standard colour – white (contact us if you require a different colour)
  • Heat exchanger water connection
  • Water temperature: 38 – 110 C
  • Maximum working pressure: 16 bar
  • Dimensions of convector can be adjusted in accordance with your project

Technical Specifications



Hitte Floor Standing Heater
Product Code
(stock models)		 Length
(mm)		 Width
(mm)		 Height/Depth
(mm)		 Output
(W)		 Electrical Supply Max Noise
Level
(db)
NSX 1000 305 125 1500 230V/50hz 9A 28
EXX1253052000XNXX 2000 305 125 3000 230V/50hz 15A 44

Design and Installation

Trench heating systems can be supplied in a multitude of geometries and with additional features such as ‘dummy’ sections where a continuous aesthetic is desired without additional heat output, with mitred corners, column features and even with curved trench sections. The standard colour is white but if we can provide powder coating to any RAL colour. We’d be delighted to help you explore options and design your optimum scheme. Just contact us for assistance and to talk through your ideas.

Our Trench Heaters should be installed by suitably qualified builders and electricians. The unit should be securely fixed and electrical connections made by a suitably qualified person in accordance with the latest edition of the IEE Requirements for Electrical Installation (BS7671).
View full details
