About this product

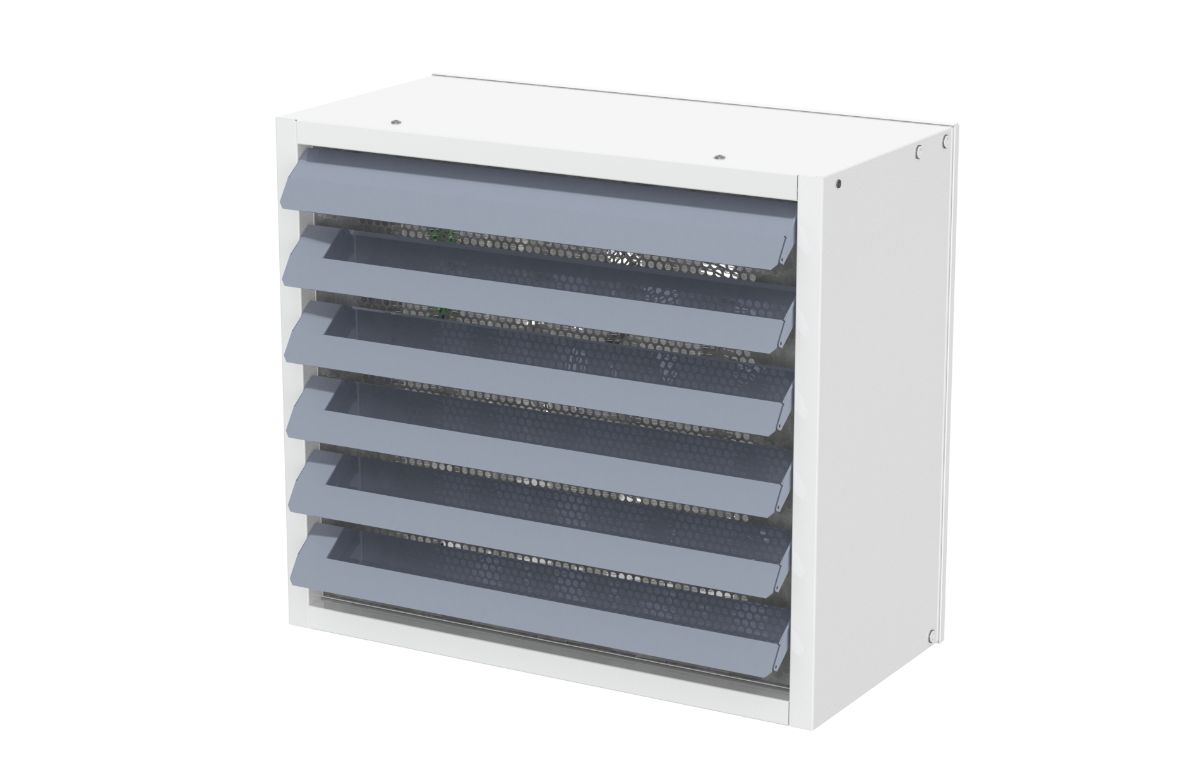

The Nevada III is a wall mounted electric fan heater for warehouses, workshops, halls and trade counters. Six outputs from 4.5kW to 20kW, with adjustable discharge segments to aim warm air where it is needed. Runs on a 400V supply and ships complete with the ECON control and matching bracket.
Technical data
| Model |
Air volume |
Outlet air temp |
Fan input |
Fan current |
Noise at 5m |
Weight |
| 1E 4.5kW |
2,225 m³/h |
16°C |
165W |
0.9A |
54 dB(A) |
19kg |
| 1E 6kW |
2,225 m³/h |
18°C |
165W |
0.9A |
54 dB(A) |
19kg |
| 1E 7.5kW |
2,225 m³/h |
20°C |
165W |
0.9A |
54 dB(A) |
19kg |
| 2E 10kW |
3,650 m³/h |
18°C |
260W |
1.4A |
58 dB(A) |
26kg |
| 2E 15kW |
3,650 m³/h |
22°C |
260W |
1.4A |
58 dB(A) |
26kg |
| 2E 20kW |
3,650 m³/h |
26°C |
260W |
1.4A |
58 dB(A) |
28kg |
Outlet air temperature is quoted with intake air at 10°C.
Dimensions and coverage
| |
Nevada III 1E (4.5 to 7.5kW) |
Nevada III 2E (10 to 20kW) |
| Width |
570mm |
720mm |
| Height |
470mm |
600mm |
| Depth |
600mm |
630mm |
| Maximum tilt in bracket |
16 degrees |
12 degrees |
| Mounting height |
up to 3.9m |
up to 4.2m |
| Air throw |
up to 7.2m |
up to 7.7m |
Mounting height and throw are quoted at a 10°C difference between outlet and room temperature. Both figures increase at smaller temperature differences.
Electrical
| Output |
Supply cable |
Circuit protection |
| 4.5kW, 6kW, 7.5kW |
5C x 2.5mm² |
3 x 10A type B |
| 10kW, 15kW |
5C x 4mm² |
3 x 16A type B |
| 20kW |
5C x 4mm² and 5C x 6mm² |
3 x 16A and 3 x 25A type B |
The electric heater runs on 400V 50Hz three phase. The fan itself runs on 230V. Each unit has two heater sections wired on separate circuits, which is why two cable and breaker ratings are given for the 20kW model. Installation and connection must be carried out by a qualified electrician.
Controls
The TP1 basic room thermostat is available separately where on and off temperature control is required.
