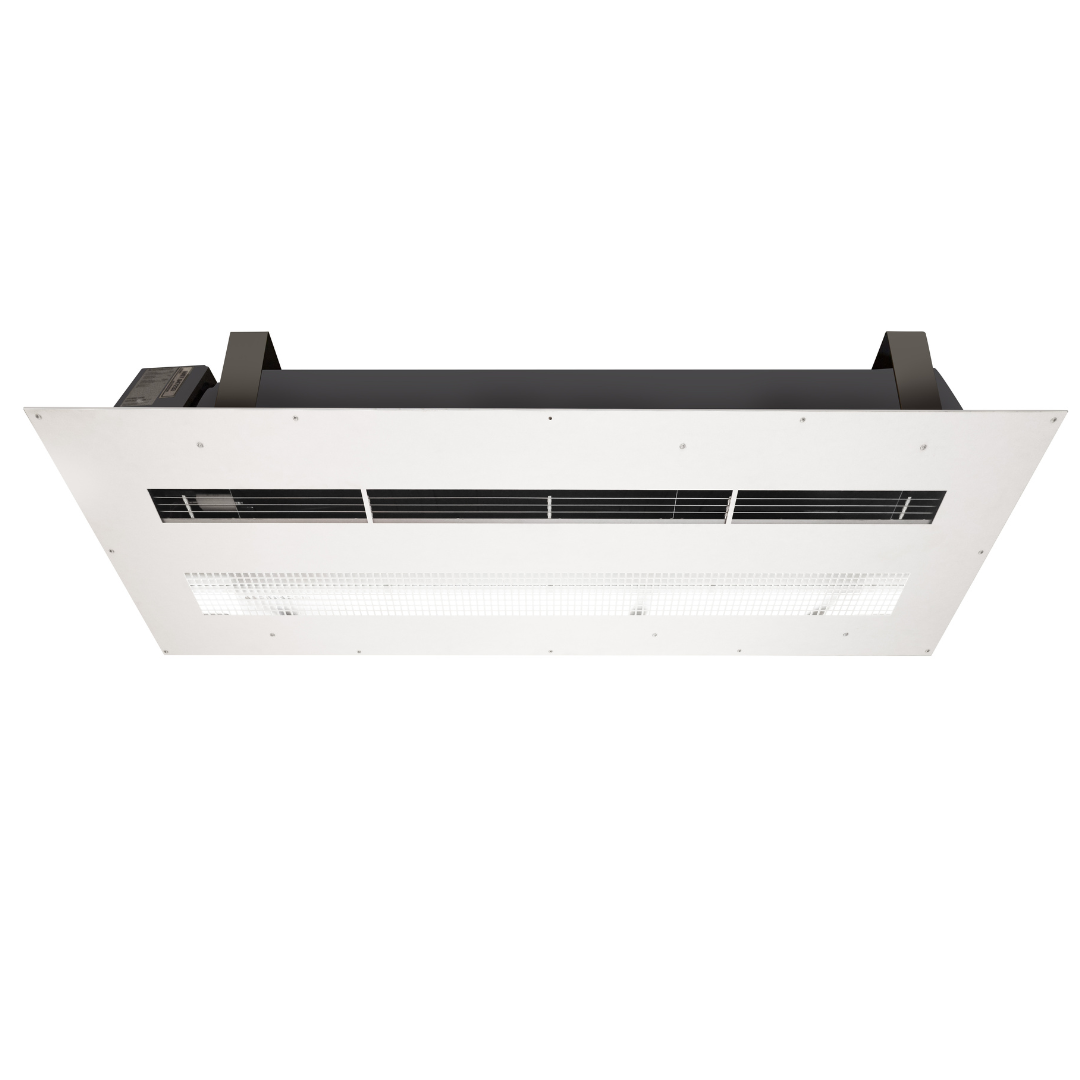

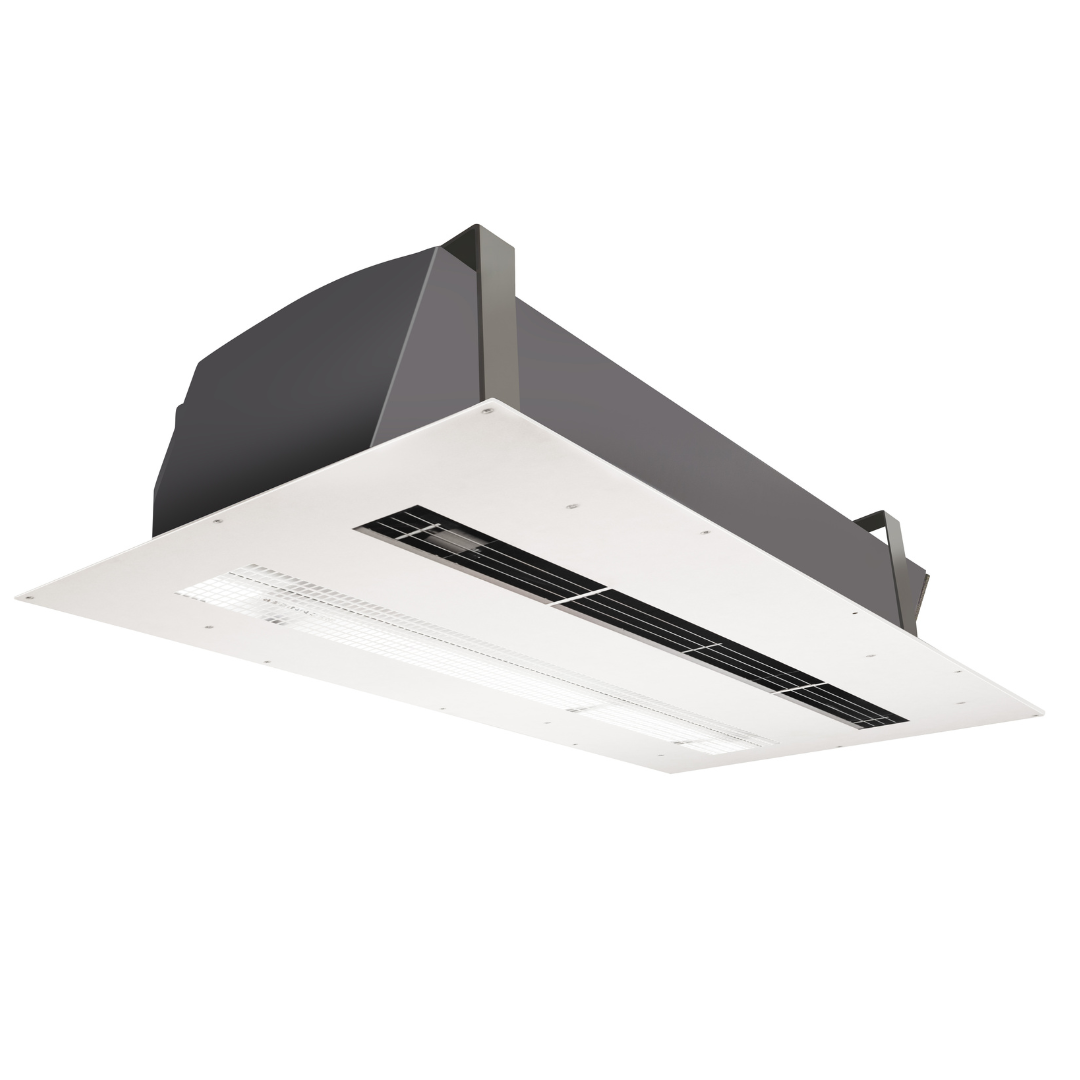

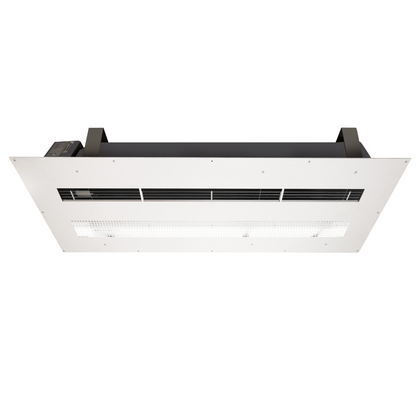

Recessed Guard Air curtain
Recessed Guard Air curtain
Couldn't load pickup availability
Maintain warmth without compromise. Our Recessed Guard Air Curtain discreetly integrates above entrances to create a powerful, invisible barrier that prevents heat loss in high-traffic zones—ideal for retail, offices, receptions, and leisure centres. Engineered for efficiency, it reduces energy wastage while supporting indoor comfort. Supplied complete with mounting brackets for easy installation.
Key Features
Key Features
- Modern Design & High Performance Parameters
- Models delivering 7kW-35kW heat output
- Models delivering airflow from 2000-4,800 m3/hr
- 3 fan speed settings
- Up to 4m mounting height & air throw for ambient air models
- Up to 3.5m mounting height & air throw for LPHW & electric models
- Mounting brackets for horizontal installation included
- Units can be used in tandem for larger openings
- Flexible Control Options
- BMS module available
- Failure rate of only 0.39%
- Noise levels found below in technical specifications
Technical Specifications
Technical Specifications
Design and Installation
Design and Installation

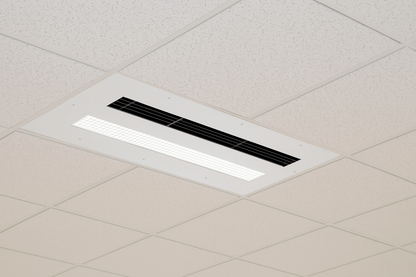

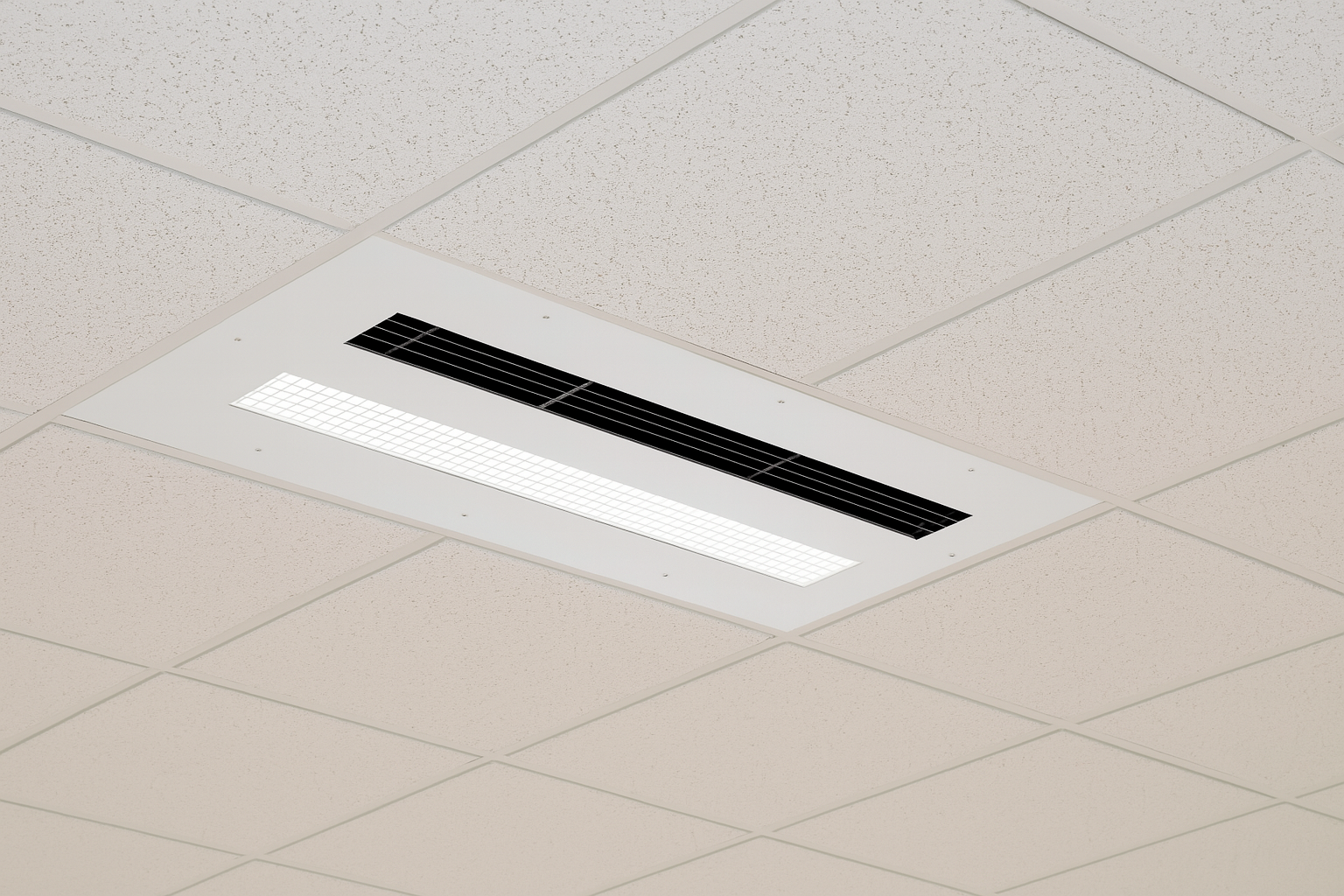

The grills in the celling have to be at least at the size of the air-curtain`s grills so 80mm width x length of the curtain (1000; 1500; 2000 mm). It is also very important to keep min. 15cm of free space above the unit. In the suspended ceiling there should also be a free circulation of air – that is why we suggest another covered hole in the ceiling.
To have the best efficiency from the air-curtain, it should be installed as close as possible to the doors.
