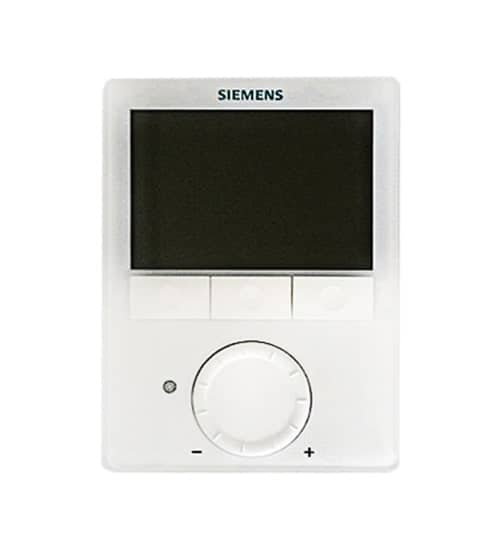

RDG 160T Siemens Smart infrastructure Thermostat
RDG 160T Siemens Smart infrastructure Thermostat
The Siemens Smart Infrastructure Thermostat works perfectly to provide users with precision control for their LPHW Fan-Assisted Trench Heating system as well as other equipment applications.
Using low and safe voltage users can manually control the fan speed on three settings or allow the thermostat to do the work for you by enabling automatic fan mode.
Where the fan speed is changed, it works to ensure that the environment that the trench is heating is kept within 0.5 degrees Celsius of the target temperature.
The efficiency is paramount with this thermostat, demonstrated with the ability to have full control over when your fan assisted trench heating operates with a 7-day programmable timer within the thermostat.
Key Features
Key Features
- Built-in temperature sensor
- Control room temperature level
- Can control outputs for DC 0…10 V or On/Off
- Fan outputs for 3-speed, 1-speed or DC 0…10 V
- 3 multifunctional inputs X1, X2 and X3 for keycard, external sensor, etc.
- Operating modes: Comfort, Economy and Protection
- Automatic or manual fan speed control
- Automatic or manual heating/cooling changeover
- Commissioning via local HMI
- Commissioning via Siemens smartphone application PCT Go
- Power reserve clock for 20 h during power failure
- Operating voltage: AC 24 V or DC 24 V
Technical Specifications
Technical Specifications
Design and Installation
Design and Installation
